Steam Sterilizer

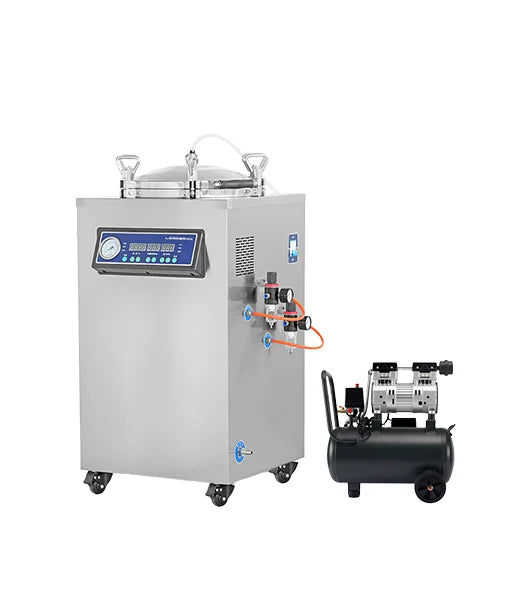

LORDERAN 100L/150L Food Steam Autoclave with Air Compressor, Counter-Pressure Food Sterilizer for Retort Pouches, Cans, Jars

SKU
100F
Availability
In stock
Questions

Ask about this instrument

LORDERAN 100L/150L Food Steam Autoclave with Air Compressor, Counter-Pressure Food Sterilizer for Retort Pouches, Cans, Jars

An engineer replies by email or phone, usually within 12 hours.

Capacity · 100L

A counter-pressure food autoclave for retort pouches, cans, jars, trays and bottles. Filtered compressed air enters with the steam and keeps the pressure outside each container at or above the pressure inside, so packs do not burst or deform during heating and cooling. Air compressor included, 100 L or 150 L; it needs water, compressed air and a 220 V single-phase supply.

LORDERAN121.0°CAIRCounter-pressure134 °C max100 · 150 L
115–134 °Csterilizing range
0–200 kPapressure setting
Standardair compressor, 60 dB
1–999 minsterilization timer
100 · 150 Ltwo sizes
Retort pouchesCanned foodsBottled drinksSauces and jamsPet food

Why counter-pressure?

Sealed packs build pressure inside as they heat. Compressed air keeps the outside pressure at or above it, so they do not burst or deform.

Is the air compressor included?

Yes, it is standard and runs at about 60 dB.

What utilities do I need?

Water, compressed air of at least 0.3 MPa, and 220 V single-phase: 20 A for the 100 L, 30 A for the 150 L.

How is the product cooled?

Steam stops and water spray and jacket air cooling begin, while compressed air keeps the chamber pressure up.

100 L / 150 L Counter-Pressure Food Autoclave datasheet (6 pages)

Full specifications, the sterilization cycle, saturated steam and F0 reference values, installation and warranty in one document to share with your team.
Download datasheet

Counter-pressure: why your packs stay intact

At high temperature the air and water inside a sealed pack expand. Compressed air keeps the chamber pressure equal to, or slightly above, the pressure inside, in both phases of the cycle.

1 · SterilizeSteam and filtered compressed air enter together2 · CoolWater spray coolsair keeps the pressure upOutside ≥ inside: packs do not burst or deform
≥ 0.3 MPacompressed air supply
≥ 0.3 MPawater source
≤ 0.5 °Cheat average
60 dBair compressor

Why it runs under pressure

Water boils at 100 °C at normal air pressure. To reach 121 °C or 134 °C, steam has to be held above atmospheric pressure, which is why the chamber is a pressure vessel. Air has to be removed first: an air and steam mixture at the same pressure is cooler than pure steam. At 134 °C the steam needs about 0.20 MPa, within the unit's 0.23 MPa (33 psi) working pressure.

0.00.10.20.3100110120130140temperature, °Cpressure, MPa gaugepressure setting up to 0.2 MPa115 °C · lowest set point0.07 MPa (10 psi)121 °C · standard cycle0.10 MPa (15 psi)134 °C · maximum0.20 MPa (29 psi)pressure above atmospheric0.00.10.20.3100110120130140temperature, °Cpressure, MPa gaugepressure setting up to 0.2 MPa115 °C · lowest set point0.07 MPa (10 psi) above atmospheric121 °C · standard cycle0.10 MPa (15 psi) above atmospheric134 °C · maximum0.20 MPa (29 psi) above atmospheric

Saturated steam pressure calculated with the IAPWS-IF97 equations, shown above atmospheric pressure (gauge). Pure steam with all air removed.

Specifications

Models 100F and 150F, 220 V single phase.

Differs between models

Model 100 L 150 L
Model
SKU 100F 150F
Performance
Working pressure 33psi (0.23mpa)
Max temperature 134 °C
Temp. setting range 115 to 134 °C (238 to 273°F)
Heat average ≤ 0.5 °C
Sterilization timer range 1 to 999mins
Pressure setting range 0 to 200kPa
Counter-pressure supply
Water source pressure ≥ 0.3MPa
Compressed air pressure ≥ 0.3MPa
Air compressor Standard
Air compressor noise level 60 dB
Chamber and loading
Inner chamber capacity φ450x620 mm φ500x747 mm
Baskets quantity 2*(φ425x275 mm) 2*(φ475x365 mm)
Operation
Exhaust method Automatic exhaust
Drainage Manual drainage
Electrical
Power 4.5 kW, single phase, 220 V, 20amps 6.5 kW, single phase, 220 V, 30amps
Plug type Three-pronged, NEMA 10-50P (Removable)
Dimensions and weight
Overall dimensions 650x617x1173 mm 716x649x1293 mm
G.W / N.W 105/80 kg 122/92 kg

Choose a size

Drawn to the same scale; the dashed outline is the inner chamber.

100L650 × 617 × 1173 mmchamber φ450 × 620150L716 × 649 × 1293 mmchamber φ500 × 747Dashed outline: inner chamber, drawn to the same scale100L650 × 617 × 1173 mmchamber φ450 × 620150L716 × 649 × 1293 mmchamber φ500 × 747

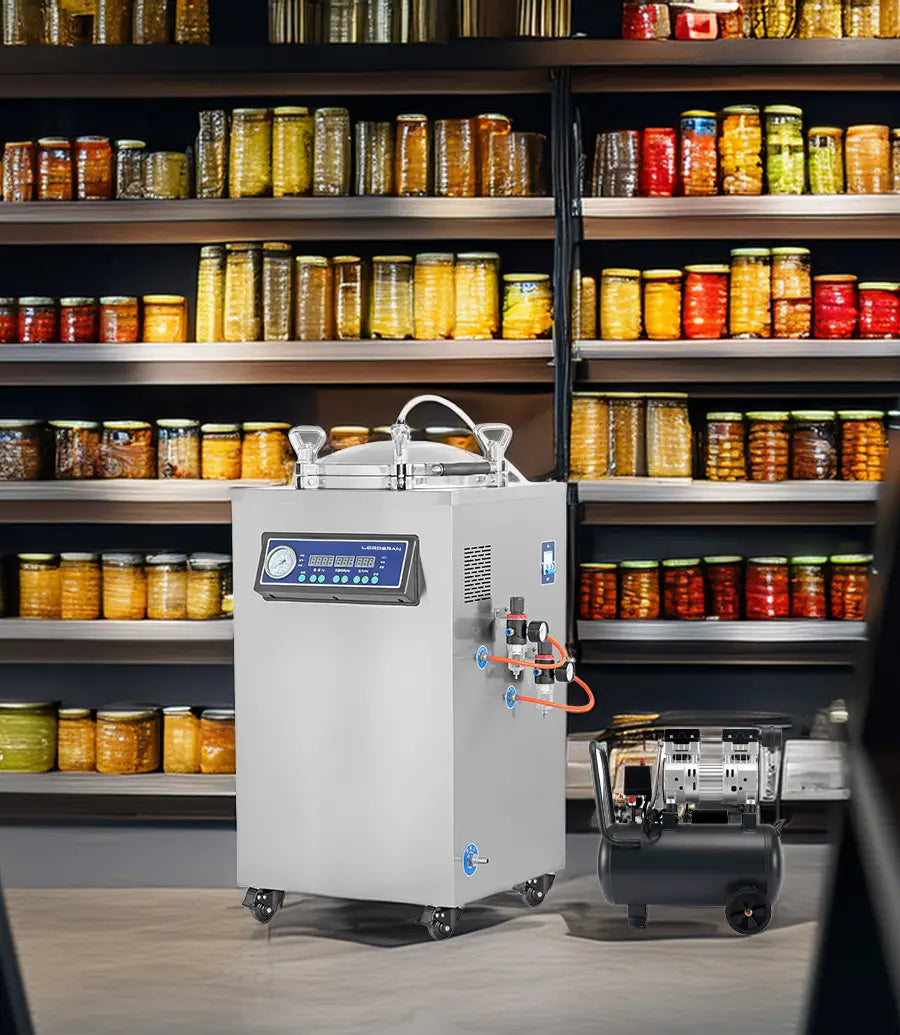

Built for packaged food

From product development to small-batch production.

Canned foods

Meats, fish, vegetables, soups and similar products.

Bottled and cartoned drinks

Juices, tea drinks, sports drinks, bottled water, coffee and cartoned dairy.

Flexible pouches

Ready-to-eat meals, sauces, convenience foods and pet food.

Semi-solid foods

Sauces, jams, ketchup and high-viscosity supplements.

Find the right LORDERAN autoclave

Compare the range by capacity, exhaust and special functions.

Questions buyers ask

Warranty, returns, delivery and quotes.

What does the warranty cover?

A 1-year warranty from the date of purchase, covering core components and controls. We repair first; if a major defect can’t be repaired, we replace the unit or give a full refund. Seals, heating tubes and other wear parts are excluded.

Can I return it?

Yes, within 30 days of delivery if unused and in original condition. For non-quality returns the buyer pays return shipping, a 3% restocking fee and the card processing fee. Defective or damaged items are covered in full.

How is it delivered, and when does it ship?

Freight, duties and taxes are paid to your loading dock; moving the autoclave inside is not included. Your confirmed ship date is included in the order acknowledgement.

Can I get a formal quote for a purchase order?

Yes. Select your size and options, then click Get a quote for a PDF quotation with DDP shipping included.
