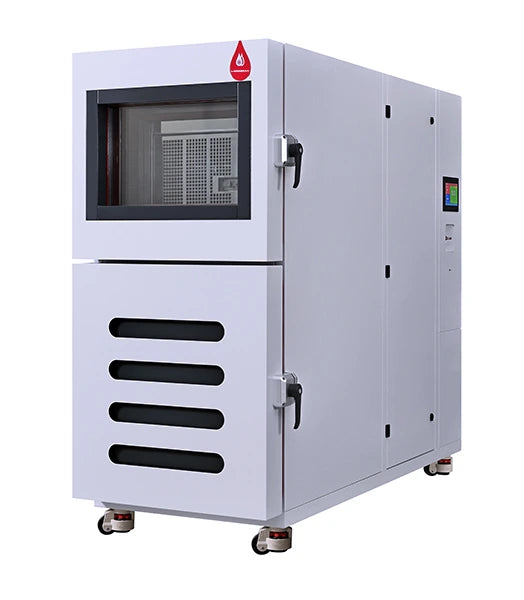

LORDERAN Programmable Two-Zone Thermal Shock Chamber, High-Low Temperature Recovery Impact Test chamber, MIL-STD Compliant
- SKU
- TS-100J
- Availability
- In stock
- Questions
LORDERAN Programmable Two-Zone Thermal Shock Chamber, High-Low Temperature Recovery Impact Test chamber, MIL-STD Compliant
$25,999
A two-zone thermal shock chamber that moves your test specimen between an independent hot zone and cold zone in 15 seconds or less, again and again. Rapid, repeated swings between as hot as 200 °C and as cold as -65 °C expose solder joint cracks, delamination, package cracks and seal failures long before products reach the field. Three sizes from 50 to 200 L, with a 3-year warranty.
Hot, cold, hot again: in seconds

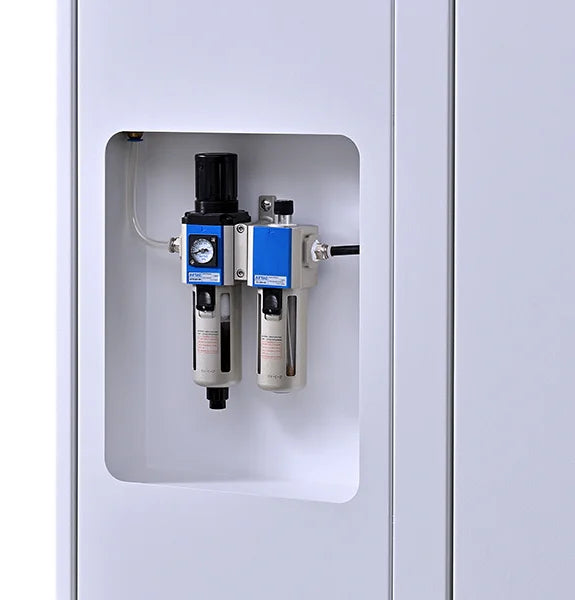

The hot zone is pre-heated and the cold zone pre-cooled. A pneumatic carrier moves the specimen between them in 15 seconds or less, and each zone recovers its set temperature within 5 minutes, so every cycle delivers the same, severe shock.
Specifications
Models CJ100 (50 L), CJ200 (100 L) and CJ500 (200 L), 3-phase power.
Download the full datasheet (PDF)Differs between models
| Model | 50L | 100L | 200L |
|---|---|---|---|
| Model | |||
| Test Space Volume | 50L | 100L | 200L |
| SKU | CJ100 | CJ200 | CJ500 |
| Dimensions and load | |||
| Inner size (W*D*H) | 450*450*500mm | 600×600×600mm | 800×800×800mm |
| External size (W*D*H) | 900*2050*2000mm | 1100*2220*2100mm | 1120*2400*2200mm |
| Test area size | 370*360*380mm | 430*490*500mm | 650×650×500mm |
| Load capacity of test area | 40kg | 40kg | 60kg |
| Temperature performance | |||
| Temperature range | -65~200℃ | ||
| Temperature fluctuation | ±2℃ | ||
| Test area temperature fluctuation | ±0.5℃ | ||
| Hot exposure range | 60℃~200℃ | ||
| Heat-up time | Within 30min from ambient temp.to +200℃ | ||
| Cold exposure range | -10℃~ -65℃ | ||
| Pull-down time | Within 80min from ambient temp.to -65℃ | ||
| Temp. recovery time | Within 5min | ||
| Transfer time between hot & cold chambers | Within 15 seconds | ||
| Power and refrigeration | |||
| Power Supply | 220V/380V/480V, 50/60Hz, 3-phase | ||
| Installed Power | 15kw | 21kw | 28kw |
| Rated Current | 49A (208V), 43A(240V), 22A(480V), 3-P | 69A (208V), 59A(240V), 30A(480V), 3-P | 92A (208V), 80A(240V), 40A(480V), 3-P |
| Cooling method | Air-Cooled System/ Water-Cooled System (8-10 HP Chiller required) | Water-Cooled System (10~12HP Chiller required) | Water-Cooled System (12~15HP Chiller required) |
| Refrigeration System | Binary Cascade Air-Cooled Refrigeration System | ||
| Refrigerant | R404, R23 | ||
| Noise level | Max 65dB | ||

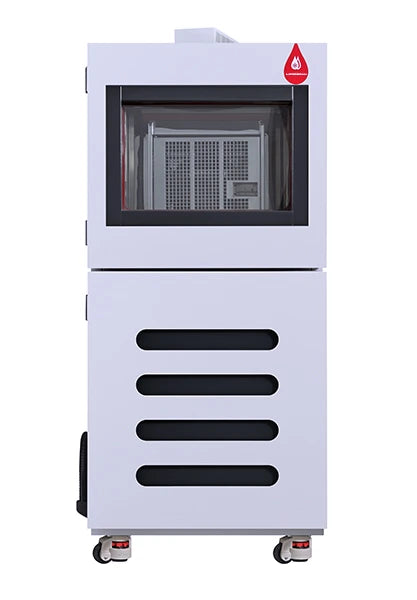

Choose a size

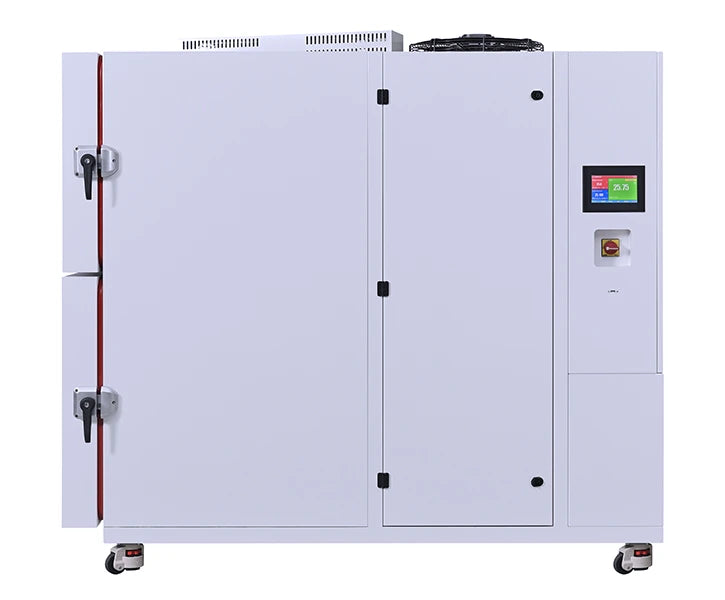

Same zones, controller and safety on every size. Front elevations drawn to the same scale.
One test cycle, fully automatic
Set the limits, the dwell time and the number of cycles. The chamber does the rest and logs the data.
Pre-heat and pre-cool
High-power heaters bring the hot zone up while the cascade system pulls the cold zone down.

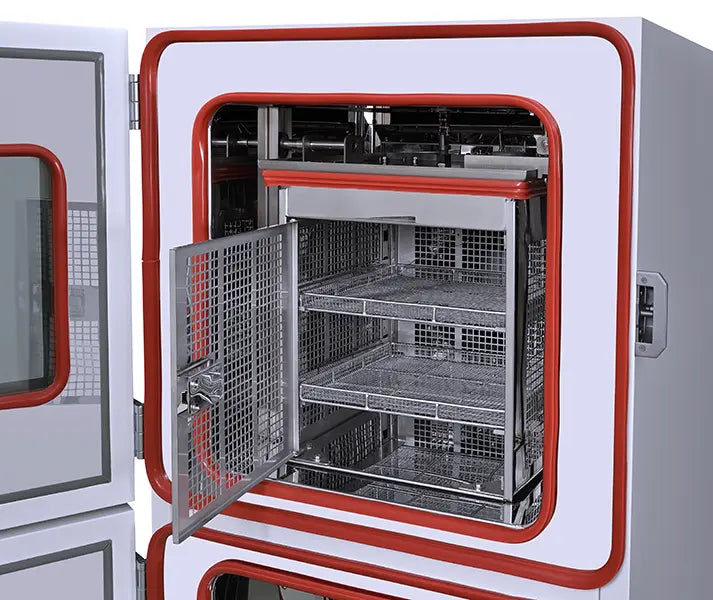

Load the specimen
Place the device under test in the carrier, up to 40 kg (60 kg on the 200 L).
Automatic transfer
The carrier moves between zones in 15 seconds or less, for the dwell you set.
Repeat and record
Run up to 99 segments per program, with the curve and run time on screen.
Built for demanding reliability testing
Engineered for repeatable shock, long campaigns and safe unattended running.

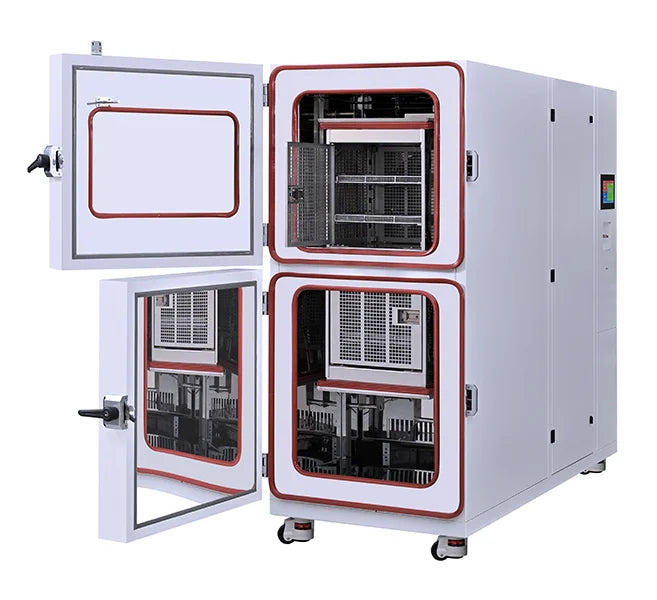

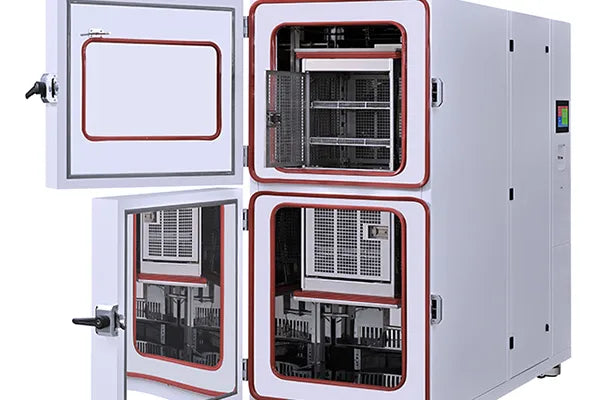

Independent zones and doors
Hot and cold rooms are controlled separately, reducing heat loss and cold leakage.
Use each zone alone
Run high-temperature aging or burn-in, or low-temperature storage, in a single zone.

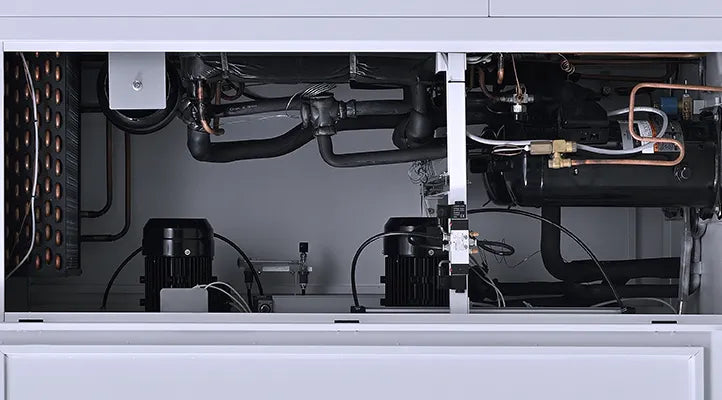

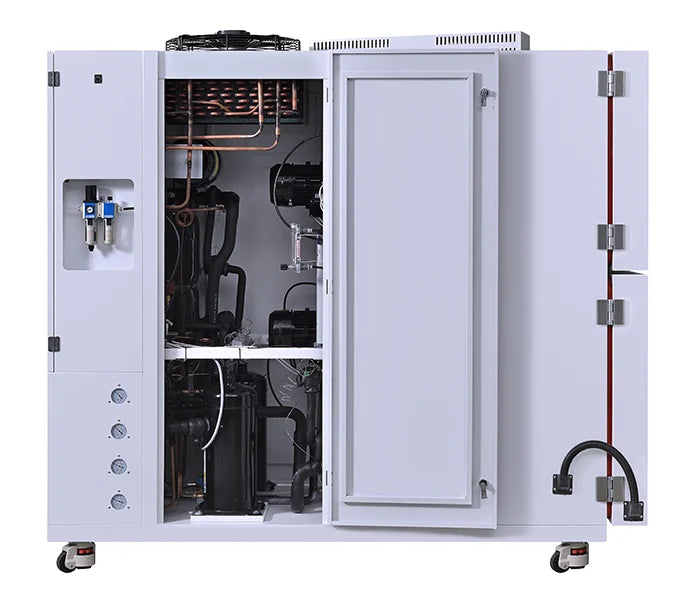

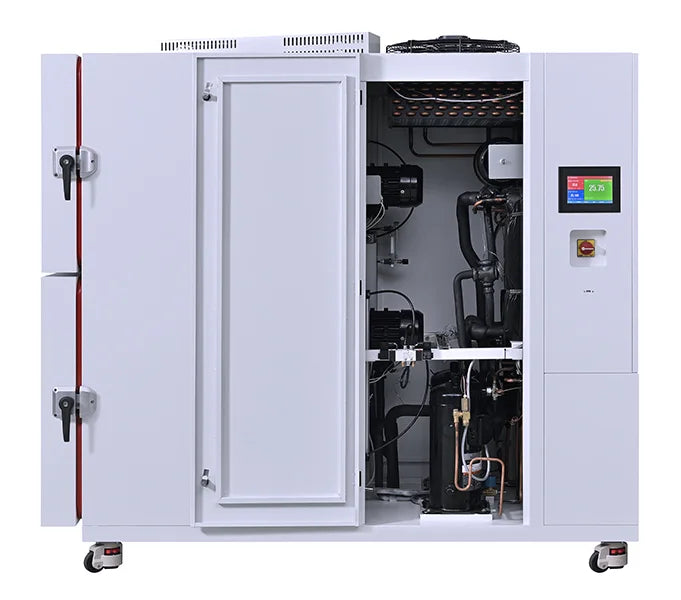

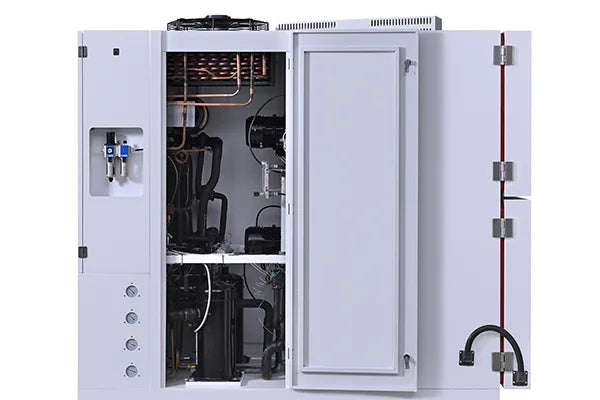

Binary cascade refrigeration
One set of imported French fully enclosed compressors, with energy regulation technology.

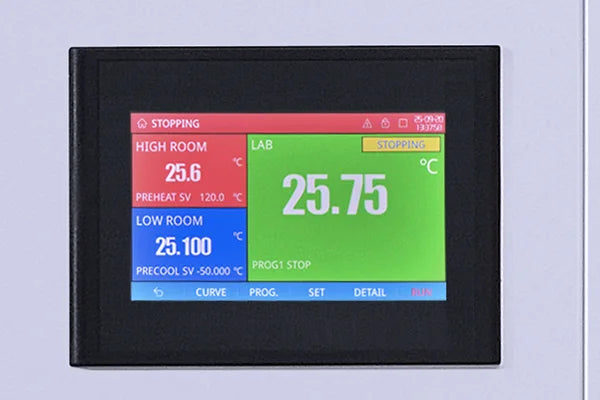

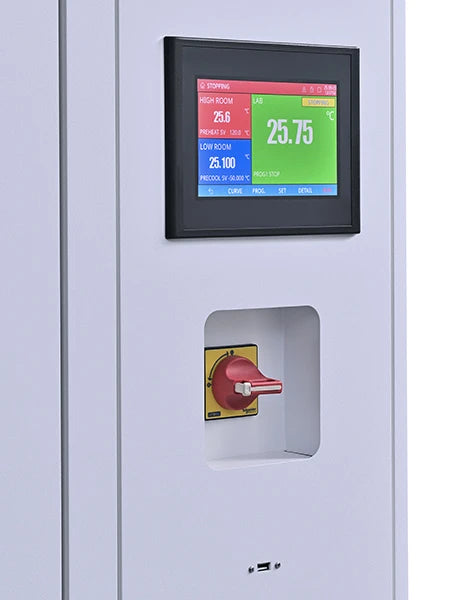

LCD touch screen
Parameters, test curve, run time and heater status at a glance, with PID auto-tuning.
10 × 99 programs
Programmed cycling or constant mode, set to 0.1 °C and 1 second.
Independent over-temperature protection
A separate hardware instrument backs up the main controller.
RS-485 and remote software
Connect the chamber to a PC for remote data.
Fault display and run-time counter
Automatic alarms, plus cumulative hours for maintenance planning.
What thermal shock reveals
Fast transitions stress the joints between materials that expand at different rates.
Thermal shock or rapid temperature change?
Two ways to stress a product with temperature. Choose by how fast the change must be, and whether you need humidity.
Test standards
Standards listed for this chamber.
Show all 10 standards: RTCA DO-160, IEC 60068-2-14, ISO 16750 and more
Questions buyers ask
Straight answers before you order.
How fast does the specimen move between zones?
Within 15 seconds, and each zone recovers its temperature within 5 minutes.
Can I use only the hot or only the cold zone?
Yes. Each zone can run on its own, for high-temperature aging or burn-in, or for low-temperature storage and functional tests.
Do I need a water chiller?
The 50 L can be air-cooled or water-cooled (8–10 HP chiller for water cooling). The 100 L and 200 L are listed as water-cooled, with a 10–12 HP or 12–15 HP chiller required.
What power does it need?
220 V, 380 V or 480 V, 50/60 Hz, three-phase. Installed power is 15, 21 or 28 kW by size.
What does the warranty cover?
A 3-year warranty. Major defects under warranty are covered by a full refund or replacement.
Download documents
The datasheet and the English user manual cover all three sizes.
